Monitoring the Mixed Quantity of Two Liquids

Input of the signal from a pulse-output type flow sensor to a twin digital panel meter.

09_Monitoring_the_Mixed_Quantity_of_Two_Liquids

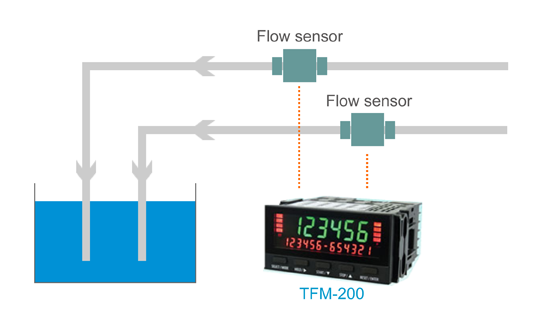

Input of the signal from a pulse-output type flow sensor to a twin digital panel meter, and monitoring of the mixed quantity of the two liquids.

Measurement of each respective flow and calculation of the difference.

In addition to high-visibility display of the calculated result, analog output, digital output, and comparator output are also available.

Related Atsense's products

Flow Meter TFW-200/TFM-200

■TFW-200 Instantaneous and total flow meter  With all the functions necessary as a meter for measuring fuel flow ■TFM-200 Instantaneous flow meter Simultaneous measurement with two flow sensors (A, B)  A high-precision, highly-functional digital panel meter with the capabilities of a measuring instrument that is specialized for flow rate    Display consisting of 6-digit and 13-digit, two-level, high brightness LCD display (red and green)      Compatible for CAN output     Possible simultaneous output of two analog channels
