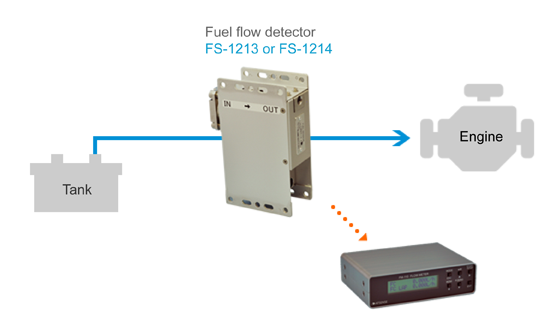

Measurement of Fuel Flow on an Actual Vehicle

Low-pressure loss fuel flow detector.

01_Measurement_of_Fuel_Flow_on_an_Actual_Vehicle

Most vehicles have a fuel returnless system.

Since it is a low-pressure loss fuel detector, the measurement can be made without a pressure device being mounted on the fuel pipe.

Related Atsense's products

FS Series

High accuracy/low pressure loss/wide range of flow ratesCompatibility with a diverse range of such fuels as gasoline, light oil, and alcohol (as well as 100% pure alcohol)Detector configuration・10μm mesh filter・Flow sensor・Temperature sensor (option)・Pressure sensor (option)

FM-110

Equipped with all the required functions and performance for the measurement of fuel flow Three simultaneous ways to measure the flow   Instantaneous, time-averaged flow, and total flow Voluminous measured data output    Analog, USB data, and pulse output
