Multi-Function Digital Panel Meter

A high-precision, highly-functional digital panel meter equipped with specialized measuring instruments for measuring flow rate, rotational speed, angle, and ratios

High-precision measuring has been built into a 96x48 DIN-sized panel meter. You can choose from a multitude of function options.

● The first panel meter that has been used for CAN data output (option)

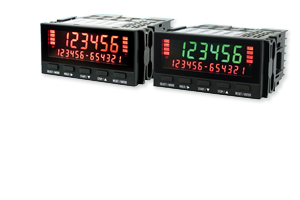

● 6-digit and 13-digit, two-level, high brightness LCD display (red and green). Selectable display color
● A multitude of options (analog output/BCD output/CAN output/contact output/RS232 communication/RS485 communication/USB communication)

Twin Digital Panel Meter

パネルメータ

Rotational Speed Ratio Meter TRM-200

Rotational speed ratio meter ■ A rotational speed ratio meter, connected to sensors with various forms of output, such as a pulse output type of rotation sensor, rotary encoder, or photoelectric sensor, which calculates speed using inputs from two such sensors. ■ 6-digit and 13-digit, two-level, high brightness LCD display (red and green) ■ CAN output supported.

パネルメータ

Tachometer TSM-200

Tachometer ■Supporting the simultaneous input of two rotation speed sensors, and displaying both parts with a single unit ■6-digit and 13-digit, two-level, high brightness LCD display (red and green) ■CAN output supported ■Maximum input frequency 2MHz (for single-phase), 500kHz for two-phase input

パネルメータ

Flow Meter TFW-200/TFM-200

■TFW-200 Instantaneous and total flow meter With all the functions necessary as a meter for measuring fuel flow ■TFM-200 Instantaneous flow meter Simultaneous measurement with two flow sensors (A, B) A high-precision, highly-functional digital panel meter with the capabilities of a measuring instrument that is specialized for flow rate    Display consisting of 6-digit and 13-digit, two-level, high brightness LCD display (red and green)      Compatible for CAN output     Possible simultaneous output of two analog channels

Unique Digital Panel Meter

パネルメータ

Reversible Pulse Counter URC-200

Reversible pulse counter ■ Maximum input frequency 2MHz (for single-phase), 500kHz for two-phase input ■ High-speed 0.5ms response for analog output and digital output ■ CAN output supported ■ 6-digit and 13-digit, two-level, high brightness LCD display (red and green)
