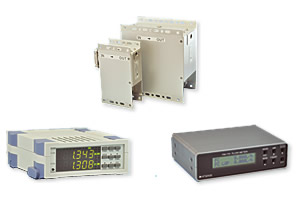

Fuel Flow Meter

A Fuel Flow Meter capable of precisely measuring a wide range from minute flows at idling to large flows at full throttling with only low pressure loss.

The precise measurement of fuel flow is the cornerstone in the ever-intensifying research and development of fuel-efficient automobiles. Demands are constantly increasing, including fuel flows that follow the motion of an accelerator pedal, fuel cut, starting and stopping in hybrid vehicles, high-resolution measurement with low rotation speeds and loads, the effect of fuel pipes, and so on. And measurements need to be made both in the vicinity of engines on test benches as well as on actual vehicles, and these must also be compatible for biofuel made from such mixtures as ethanol and gasoline. We provide fuel flow meters to respond to these needs.

●Wide range of flow rate
  FS-1213: 0.06 to 108L/h FS-1214: 0.3 to 600L/h
●High accuracy   The FS series flow detector:
  ±0.2%R.D. Flow meter FM-110: ±50ppm R.D.
●High-speed response   Analog output refreshed every 1ms
●High resolution
Combination of the FS-1213 flow detector and the FM series flow meter: 0.0005mL
Combination of the FS-1214 flow detector and the FM series flow meter: 0.0055mL

●Low pressure loss Measurements can be made by using a returnless system with low     pressure loss in the detector (a filter and sensor assembly) without the use of a pressure device
●Backflow correction   High accuracy net flow measurement to obtain the minute backflow

Flow Meter

Fuel Flow and Density Meter FDM Series

Various possible measurements to obtain the detailed fuel flow by inputting the signals fr...

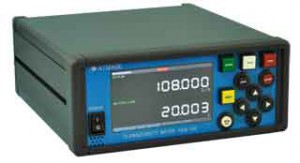

Flow Meter TFW-200/TFM-200

■TFW-200 Instantaneous and total flow meter  With all the functions necessary as a meter for measuring fuel flow ■TFM-200 Instantaneous flow meter Simultaneous measurement with two flow sensors (A, B)  A high-precision, highly-functional digital panel meter with the capabilities of a measuring instrument that is specialized for flow rate    Display consisting of 6-digit and 13-digit, two-level, high brightness LCD display (red and green)      Compatible for CAN output     Possible simultaneous output of two analog channels

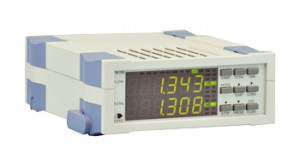

FM-500

Providing an accurate net fuel consumption measurement by measuring the fuel flow in both ...

FM-110

Equipped with all the required functions and performance for the measurement of fuel flow Three simultaneous ways to measure the flow   Instantaneous, time-averaged flow, and total flow Voluminous measured data output    Analog, USB data, and pulse output

In-line Density Meter/Alcohol Meter

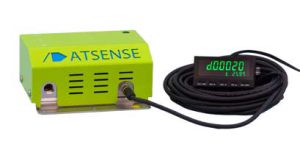

DM-200

■ In-line fluid density measurement■ High-precision density measurement■ Possible mass flow rate measurement when used in conjunction with a volume flow rate meter■ Has enabled density measurement in small spaces

Accessories

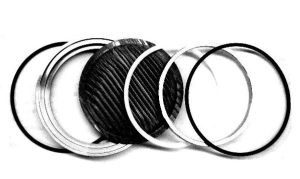

10μm Mesh Filter

An optimal 10μm mesh filter for the FS series that accurately measures flow rate and protects the sensor

Fuel Flow Detector

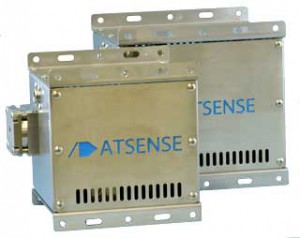

Fuel Flow and Density Detector FDS Series

A detector housing a volume flow sensor, density sensor, temperature sensor, and pressure sensor, and which also comes equipped with a filter A single apparatus is able to measure fuel flow rate by encompassing all the various sensors required, and can be laid out conveniently on a test bench

FS Series

High accuracy/low pressure loss/wide range of flow ratesCompatibility with a diverse range of such fuels as gasoline, light oil, and alcohol (as well as 100% pure alcohol)Detector configuration・10μm mesh filter・Flow sensor・Temperature sensor (option)・Pressure sensor (option)
