■ Detection of the ignition signal from the ignition plug cable of a gasoline engine.
■ The structure of the detection part allows it to be clamped into position around the ignition plug cable.
■ Connection to the equipment is made with a BNC connector.

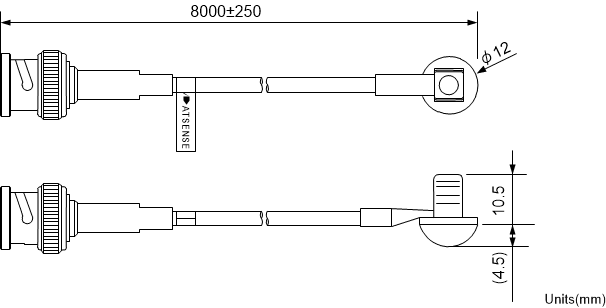

| Total length | 8000±250mm |
|---|---|
| Weight | Approx. 160g |
| Detection part | A compatible cable of diameter φ6.4 Material: phosphor bronze (flange part: S45C, nickel plated) Cable connector: silicon mold processing |
| Cable | Coaxial cable: 1.5D-2V equivalent Sheath material: PVC |
| Connector | BNC plug |
