【 In-line Density Meter/Alcohol Meter 】 DM-200

Automobile engine research and development
Test equipment

Redesigned for small size and higher performance Atsense in-line density meter

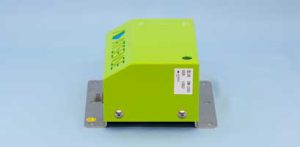

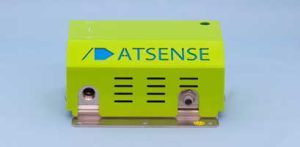

DM-200_TOP
DM-200_TOP



■ In-line fluid density measurement
■ High-precision density measurement
■ Possible mass flow rate measurement when used in conjunction with a volume flow rate meter
■ Has enabled density measurement in small spaces

Features

  • Density can be measured in-line, in real time.
  • For large flow rates, the flow is automatically split between the sensor cell and a bypass flow path to reduce pressure loss
  • Easy setup by simply inserting it into an existing line and then turning the power ON.
  • Simultaneous display of density and temperature
  • In combination with a volume flow meter with a dynamic range at least 1000 times greater, you can also measure mass flow rate.
  • Easy connection using digital output USB equipment
  • Mounting space for the sensor unit is now even smaller (a 40% space-saving compared to the conventional DM-100S)
  • The display unit is small-scale and lightweight (200g), so it can be panel mounted.

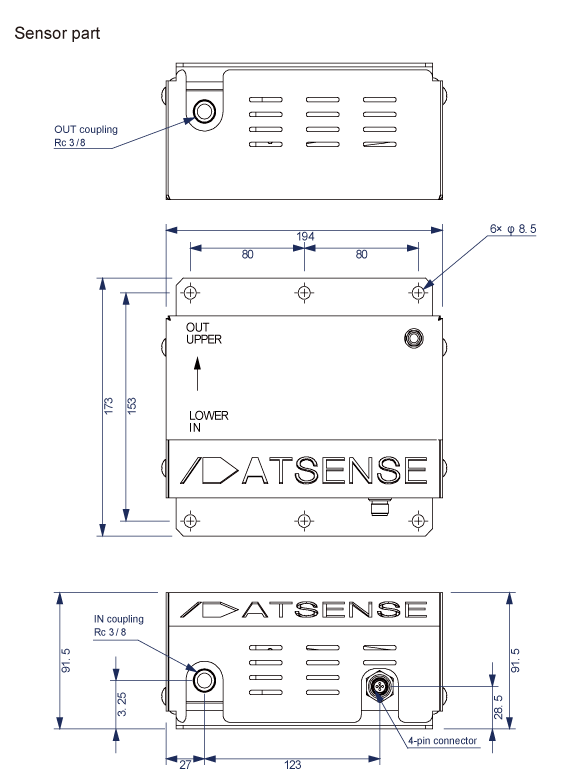

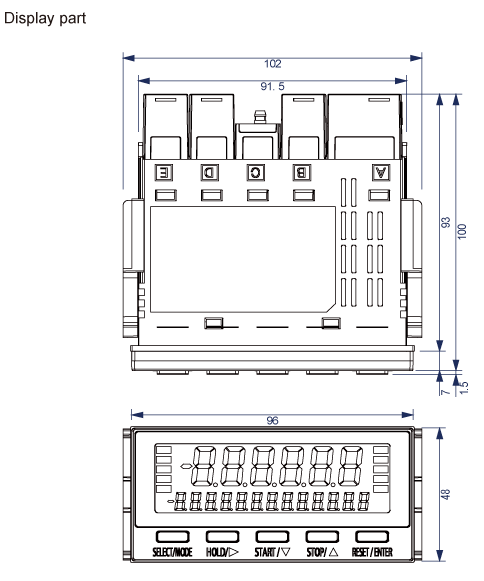

External dimensions diagram

07_sensor_E

07_display_E

Specification

Sensor
Substances measured Gasoline, light oil, and fuel mixtures of these with ethanol
(Please contact us if measuring other than these fuels.)
Fuel inlet and outlet Rc3/8
Voltage resistance 1MPa (for a liquid temperature of 60°C or less)
Range of liquid temperature 5 to 60°C
Density measurement Range: 0.5 to 2g/cm³
Uncertainty: ±0.001g/cm³ (5 to 60°C)
Temperature measurement Range: 5 to 60°C
Uncertainty: ±0.1°C
External dimensions W: 194 H: 173 D: 91.5 (excluding projecting parts)
Weight Approx. 3kg
Display
Display LCD negative, backlight
Display color
Main display: switching between red and green backlight, character height of 14.2mm, 6 digits + polarity (-)
Sub-display: switching between red and green backlight, character height of 6.5mm, 13 digits + polarity (-)/6 digits + polarity (-), 2 points
Density display: d.dddd g/ccm (excluding units)
Temperature display: tt.tt °C (excluding units)
Display update period: Approx. 1 second
USB 38,400bps, 8 data bits, 1 stop bit, no parity bit
mini-B connector
Internal circuit and non-isolated
Supported Operating Systems
Windows XP, Server 2003, Vista, Server 2008, 7, Server2008 R2 and Windows 8
A VCP driver must be installed to make a connection with the host computer. For details and support for other operating systems, please refer to the company homepage of FTDI, Ltd.
Virtual communication port connection (FTDI, Ltd.)
Transmission period Approx. 1 second
Telegraph format T꞊#tt.tt<C>#D꞊d.dddd<g/ccm>CrLf   (#: space)
Analog output Voltage range
±10V/0-10V/0-5V/1-5V (load of 4.7kΩ or more)
* 0-5V/1-5V are specified using additional options
Current range
4-20mA (load of 500Ω or less)
* Specified using an additional option
Refresh period   Approx. 1 second
Power supply AC power supply: AC100 to 240V±10% (50/60Hz)
DC power supply: DC12 to 24V±10%
External dimensions W: 96 H: 48 D: 100 (excluding projecting parts)
Items in common
Operating ambient temperature 10 to 40°C
Temperature range for storage 10 to 40°C
Humidity 10 to 80%RH (with no condensation)
